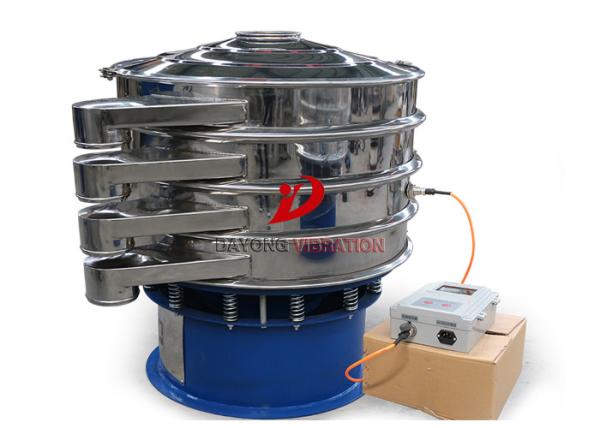

High Tech Standard Automatic Powder Ultrasonic Vibrating Sieving Machine

Product Introduction

Ultrasonic sieving system consists of ultrasonic generator, energy converter and resonant ring. Ultrasonic generator produces high frequency oscillation and energy converter turns it into high-frequency sinusoidal longitudinal shock wave. This shock wave gets to resonant ring to make it resonate. Then resonant ring puts oscillation transmission to screen surface evenly. Materials on the surface will do low-frequency three dimensional vibration and ultrasonic vibration at the same time. This can prevent mesh clogging and improve yield and quality of screening.


Mian Features

1. High efficiency, elegant design & durable, available for any powder, particles and viscous liquid;
2. All material contact parts are stainless-steel 304;
3. The granularity may be raised by 1-70%,and the output may be improved to 10 times at most;
4. Self-cleaning devices keep the screen clean during all operations;
5. Easy to operate, easy to change the screen mesh, easy to clean;
6. High granularity can solve some difficult problems,such as strong absorbability,being easily to reunite,high static electricity,high density,light proprtion and so on.


Using Scope

1. Chemical industry: pigment, washing power, micro power paint ,soda ash, citric acid.
2. Abrasive, ceramic industry: silicon carbide, emery, alumina, quartz, sand, mud.
3. Food industry: sugar, salt, alkali, milk power,soya-bean milk yeast,fruit juice, ect.
4. Paper-making industry: black and white fluid , liquid waste, paper fluid,wastewater recyling.
5. Metallurgical mining industry: oxide, electromagnetic material ,metal power ,electrpde power.
6. Waste water treament: garbage, human and animal excrement urine, residues,food waste water and waste water processing.


Technical Parameters

Related Product


FAQ

Q: How to select a suitable vibrating screen?
A. what’s the material and its density?
B. what’s the mesh size? And which size of powder do you need?
C. What’s the percentage of every size in your material?
D. What’s your excepted capacity?

Q: How many kinds of material are supported?
A. All stainless steel 304 / 316
B. All carbon steel
C. Contact part Stainless steel.
