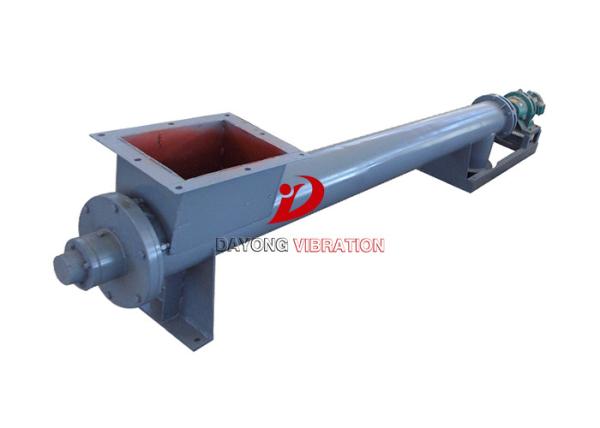

CE Certification Efficient Stainless Steel Flexible Screw Conveyor
With Hopper
Working Principle
LSY series flexible screw auger conveyor, which usually consists of
interchangeable shaftless screw, flexible conveyor tube, drive
motor, hopper, flow-promotion device, sensor and controller, is one
of the most reliable and cost effective methods for transferring
dry bulk solids from one point to another within a factory. It can
satisfy the most diverse and demanding end-use requirements.
Screw conveyor uses revolving screw to move the conveyer material
in fixed casing, the bearings of head and tail are moved to shell,
hanger bearing adopts sleeve bearing, which have dustproof sealing
device, bearing bush usually adopts powder metallurgy,convey
concrete adopts felt bushing, hanger shaft and screw shaft are
connected by slider.
Main Features
1. Though can do up to 70 meters.
2. Two motors: vibrating motor & feeding motor.
3. Flexible installation, simple operation, easy maintenance, low
cost.
4. Optional device: mixing bar in the hopper.
5. Easy to clean, it can meet the food leve requirements.
6. Good applicablity, compact structure.
7. A discharge hole on the tube bottom.
8. Large load capacity, long service life.
Using Scope
1) Chemical industry: resin pigment, medicine, grease, paint,
palette, etc.
2) Abrasive material and ceramic industry: building sand, mica,
alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk
powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper
making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium
oxide, zinc oxide, etc.
Technical Parameters
| Model | LSY 100 | LSY 120 | LSY 140 | LSY 160 | LSY 200 | LSY 250 | LSY 300 | LSY 400 |
| Diameter of screw (mm) | 90 | 115 | 135 | 163 | 185 | 237 | 285 | 362 |
| Speed of main axis (r/min) | 300 | 300 | 300 | 308 | 260 | 200 | 170 | 170 |
| Diameter of main case(mm) | 108 | 133 | 159 | 194 | 219 | 273 | 325 | 402 |
| Max capacity (t/h) | 7 | 10 | 15 | 25 | 40 | 60 | 90 | 120 |
| Max conveying length (m) | 8 | 10 | 12 | 15 | 18 | 25 | 25 | 25 |
| Working angle (degree) | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 |
| Motor | model | Length≤7M | Y90S-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y132M-4 | Y160L-6 | Y180M-4 | Y180M-4 |
| Power (kw) | | 1.1 | 2.2 | 3 | 5.5 | 7.5 | 11 | 18.5 | 18.5 |
| model | Lengtth≥7M | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160M-4 | Y180L-6 | Y180L-4 | Y180L-4 |
| Power ( kw) | | 2.2 | 3 | 4 | 7.5 | 11 | 15 | 22 | 22 |
FAQ
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and
international standards, and we take a test on each equipment
before delivery.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we
have a professional after-sale service team to promptly and
thoroughly solve your problems.
Attention1:
This screw conveyor is a customizable machine. We can design and
manufacture a screw conveyor according to customers' specific
requirements.
Attention2:
The screw conveyor also be called as other name in different
country, for example, sometimes will also named it as pipe screw
conveyor; auger conveyor; Trough Shaped Screw conveyor; screw
feeder; U-type Screw Conveyor and so on.
