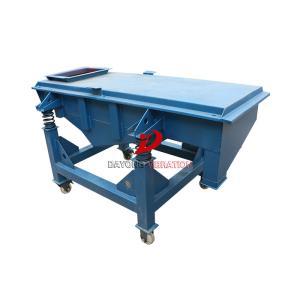

Saving Energy Mining Vibrating Screen Machine For Mineral
Separation
Working Principle
Two vibration motors installed on the equipment which work in
simultaneously and reverse rotation. The screen box supported by
the four springs produce reciprocating linear motion under the
vibration force generated by the motors. When the the vertical
component of the vibration acceleration is greater than
acceleration due to gravity, material in the tank was thrown up,
press forward to jump along parabolic path. Each vibration of the
tank, the material would be thrown up once. In the process of
encounter with the screen, the material which is smaller than
screen mesh can go through it, so as to achieve classification
purpose.
Main Features
1.Less energy consumption, low noise, long service life of the
screen.
2.High accuracy in screening, high yield and simple structure.
3.Totally closed structure, automatic discharging, more suitable
for assembly line work.
4.The weld joints of each part of the sieve body adopt rolled plate
and proximate matter (part of the group adopt bolted connection),
it has such characteristics as good integral rigidity and fastness
and reliability.
Using Scope
1. Chemical industry: resin, paint, industrial chemicals,
cosmetics, paint, medicine powder, etc.
2. Food industry: sugar, starch, salt, rice flour, milk powder,
milk, egg, soy sauce, fruit juice, etc.
3. Metals, Metallurgy Mining: aluminum, lead powder, copper powder,
ore, alloy powder, welding powder, manganese dioxide, etc.
4. Pollution treatment: waste oil, waste water, dyeing waste water,
additives, such as activated carbon, etc.
Technical Parameters
| Model | W*L (mm) | Power(KW) | Material size(mm) | screen surface angle (°) | Amplitude(mm) | Layer |
|
| DZSF-520 | 500*2000 | 2*(0.4-0.75) | 0.074-10 | 0°-7° | 4-10 | 1-5 |
| DZSF-525 | 500*2500 |
| DZSF-1020 | 1000*2000 |
| DZSF-1025 | 1000*2500 | 2*(0.4-1.1) |
| DZSF-1030 | 1000*3000 | 2*(1.1-1.5) |
| DZSF-1040 | 1000*4000 |
| DZSF-1235 | 1200*3500 | 2*(1.1-2.2) |
| DZSF-1250 | 1200*5000 |
| DZSF-1535 | 1500*3500 |
| DZSF-1560 | 1500*6000 | 2*(2.2-3.7) |
| DZSF-1845 | 1800*4500 | 0.074-15 |
| DZSF-2050 | 2000*5000 |
| DZSF-2260 | 2200*6000 |
Company Information
Xinxiang Dayong Vibration Equipment Co., Ltd., located in Xinxiang
city, Henan province, China, which is an enterprise integrated
scientific researching, device producing and product marketing. We
mainly produces DY series vibrating screen, linear vibration sieve,
test sieve, vibration conveyor, vibration feeder and other handling
equipment.
Our company mainly produces the products for sieving, conveying,
elevating, and crushing equipment. Our company has strong technical
force, with the strategy aiming to obtain enterprise reputation, be
bold in innovative technology and provides good service, and our
company has become a well-known enterprise in the industry.
Our Service
1. Pre-sale service: We can provide you with project design,
process design, suitable purchase program for your equipment.
2. Sale service: We will accompany you to visit our factory and all
kinds of machinery and equipment if you come here, also show you
construction plan and assist in the development process in detail.
3. After-Sale service: We will send technicians to the scene to
guide the equipment installation, commissioning and training your
operating personnel.
