Steel Trommel Vibration Separation Machines Environmental Protection

Working Principle

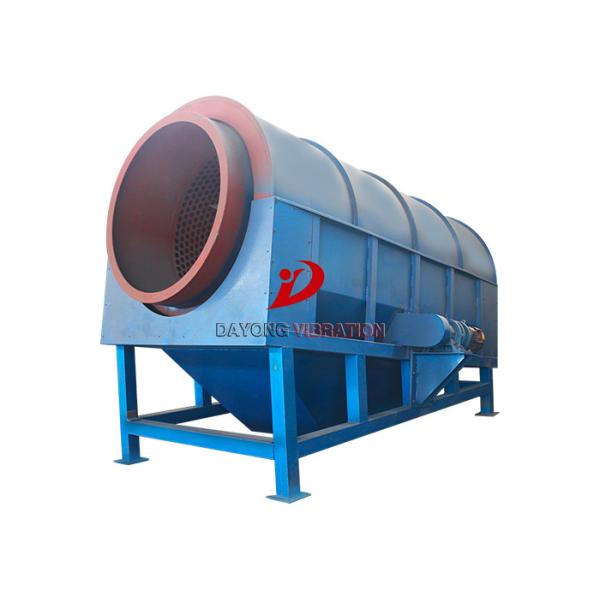

Mining trommel screen, is mainly composed of motor, reducer, roller device, frame, sealing cover, inlet and outlet.
The roller device is installed on the machine frame.
The motor is connected with the roller device through a coupling through a speed reducer, and the driving roller device rotates around the axis.
When the material enters the cylinder device, due to tilting and rotating drum device, so that the screen material turnover and rolling, the qualified materials (sieve products) by a cylindrical screen discharge, the unqualified materials (sieve products) by the end of the discharge.
Because the material inside the drum turning, rolling, so that the material stuck in the sieve can be ejected, prevent clogging.

Main Features

1. Low cost, for alluvial gold plant.
2. Includes the washing function and separating function, very high efficiency,pay back very soon.
3. Small Volume,Easy Movable,Support Wheels.
4. Diesel enigne/electric motor available.
5. Easy and convinient operation.
6. Strong body, our engineer has redesigned the frame, use thicker and stronger material for all the part.
7. The size and capacity can be customized.

Using Scope

Trommer Sieve is a special designed classifying equipments for power plant, coking plant, building materials, metallurgy, chemiical industry, mining and so on , which improved classifying system's production capacity and reliability.
It is mainly applied to quarry factory to classify big and small size stones, and separate slime and stone powder, quarry factory is use to sand and stone separation, coal industry use to lump coal and powder coal separation and washing (parts of coal; Washing plant), chemical industry, mineral processing industry for big size and small size classification and de-sliming or de-watering.

Technical Parameters

Introduction of Trommel Screen

1. Trommel drum screen is mainly consists of motor, reducer, drum units, sealing cover, support, etc.
2. Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis.
3. When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer of trommel screen, substandard materials come out by the end of trommel screen.

Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to providing customers with reasonable and efficient screening, conveying and crushing equipment design solutions.
1. The company have more than 100 employers, and setted with R & D, technology and other departments, of which graduate students, college education accounted for more than 80%.

2. The company is located in Henan, Xinxiang province. The main products are divided into:
Fine screening equipment (lab sieve shaker; vibro screen; ultrasonic vibrating screen; flour screen; rotary sifter; liquid sifter; tumbler screener; linear vibrating screen; gyro screen, etc.);
Mining screen equipment (roller or trommel screen, circular vibrating screen; heavy linear vibrating screen; probability screen; dewatering sieve; stack sieve etc.)
Conveyor equipment (belt conveyor, screw conveyor, bucket elevator, etc.)
Crushing equipment (hammer crusher, jaw crusher, etc.)

3. The pruducts has passed the ISO9001 quality system and CE certification, and all the equipment fittings are famous brand in China.
4. The equipment is not only popular in China and have been exported to the United States; Australia; Russia; Britain; Spain; Germany; Japan; Holland; Poland; Turkey; Oman; Philippines; Thailand; Indonesia; Singapore and other countries and regions.
