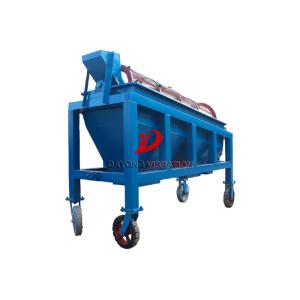

Easy Maintenance Limestone Drum Trommel Separator Screen With Belt Conveyor

Product Application

1. Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3. Chemical: fertilizer industry etc.
4. Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
5. Metallurgy, construction, building materials, abrasives, and other industries.

Working Principle

The motor contact with the roller by the couple though reduction gears. The roller rotates around its axis drove by the motor. When the materials enter into roller, the materials on the surface of screen will overturn and roll as the screen. Because the whole slant set is running and turning. The qualified materials will be discharged out from the bottom of the roller. And the unqualified materials will run out from the opposite side. Materials overturn and run ceaselessly. So if there are materials locked in the hole of screen, they will be ejected, which can prevent the screen hole from blocking.

Main Features

1. Configured for economical & efficient classification, Screening and grading.
2. Heavy duty trommel drum with lifters at the front to facilitate material break up.
3. Screen replaceable for different mesh sizes.
4. Multiple screen size.
5. Easily changed screen plates.
6. Largest processing capacity in the industry.
7. Heavy duty feed hopper and extension.
8. Discharge chute.
9. Gear drive mechanism.
10. Variable speed drive mechanism.

Technical Parameters

Introduction of Trommel Screen

1.Trommel drum screen is mainly consists of motor, reducer, drum units, sealing cover, support, etc.
2.Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis.
3.When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer of trommel screen, substandard materials come out by the end of trommel screen.
