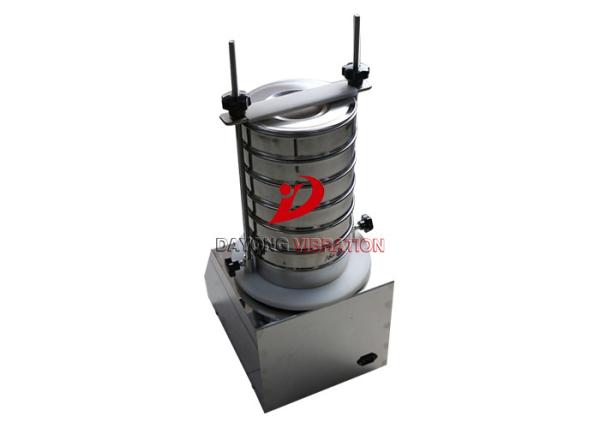

High Preformance Ultrasonic Sieve Testing Equipment For Powder / Granule

Working Principle

Our engineers available to service overseas lab sieve adopts new type power generator that generates multivariate high-frequency vibration to sieve and filter samples efficiently. Meanwhile ,its standard screen makes sure sample analysis of high precision. At the same time,it uses upright motor as the source of vibration, The vertical motor, which is installed with eccentric hammers on the top and bottom, is regarded as vibratory source. The eccentric hammers change the track of rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle between the top and bottom eccentric weight can change trajectories of the materials on the sieve.

Using Industry

It applies in the accurate analysis of granularity structures of particle and power materials, and the testing analysis of solid content in liquid for laboratories, quality control rooms and scientific research departments. The testing sieve is widely used in testing analysis of chemical, pharmaceutical, food, building materials, powder metallurgy, and material in the processing process of the sewage and waste water from environmental protection industry.

Main Features

1. This test sieve shaker has low working noise(<50dB), high efficiency, and high precision(>95%).
2. Multi-dimensional vibration can be created, making the sieving process highly efficient.
3. The standard screen can guarantee the high precision of the analysis.
4. A timer is available for the motors of our test sieve shaker. Different sieves with different meshes can be used to screen a certain kind of material for a same period of time, ensuring that data are comparable, and the data’s error is reduced to a low level. Thus you can access the material quality accurately by this premium shaker.

Technical Parameters

FAQ

1. How about the sealing of this machine ?
Between two decks, there are silica gel ring to seal. Then the clamp would lock two decks tightly with the extended copper nut.

2. Could this machine be refitted or designed to suit to my production line ?
All of machines in our company could be customized by clients' specific requirement such as the height from outlet to ground, the inlet shape, the outlet shape and the gate design on first deck.

3. How can I get the matched spares for maintaining ?
The matched spares such as seal ring, bouncing ball, screen surface, clamp screws and nut could be ordered one set or more as customers' need.

Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to providing customers with reasonable and efficient screening, conveying and crushing equipment design solutions.
1. The company have more than 100 employers, and setted with R & D, technology and other departments, of which graduate students, college education accounted for more than 80%.

2. The company is located in Henan, Xinxiang province. The main products are divided into:
Fine screening equipment (lab sieve shaker; vibro screen; ultrasonic vibrating screen; flour screen; rotary sifter; liquid sifter; tumbler screener; linear vibrating screen; gyro screen, etc.);
Mining screen equipment (roller or trommel screen, circular vibrating screen; heavy linear vibrating screen; probability screen; dewatering sieve; stack sieve etc.)
Conveyor equipment (belt conveyor, screw conveyor, bucket elevator, etc.)
Crushing equipment (hammer crusher, jaw crusher, etc.)

3. The pruducts has passed the ISO9001 quality system and CE certification, and all the equipment fittings are famous brand in China.
4. The equipment is not only popular in China and have been exported to the United States; Australia; Russia; Britain; Spain; Germany; Japan; Holland; Poland; Turkey; Oman; Philippines; Thailand; Indonesia; Singapore and other countries and regions.
