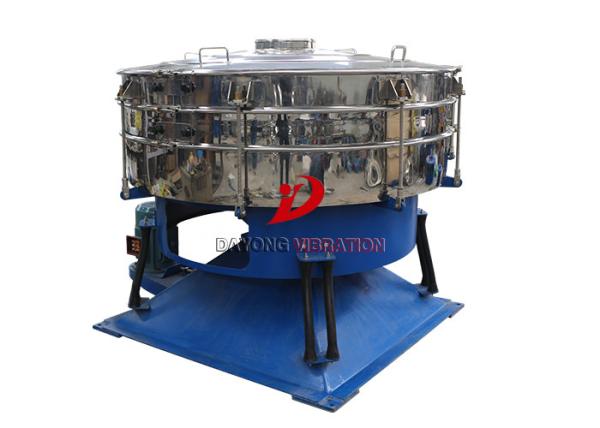

Vertical Plastic Particle Tumbler Screener In Chemical Industrial Fields

Working Principle

Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal,vertical and inclined movement, and then pass the movement to the sieving surface.Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

Main Features

1. Basic rotary motion is similar to artificial sieving, eccentricity ratio is adjustable from 25 to 40mm, low speed V-belt drive is adjustable from 120 to 360rpm.
2. 5 times output per unit area than normal vibrating scree.
3. Accurate to six grade screening.
4. Screening efficiency ≥95%.
5. Use silicone balls, rubber balls, ultrasonic and drum brush for clearing mesh cloth.
6. Mesh cloth not blocked, closed dustproof, safe operation.
7. Accelerated speed is lower than the average 4.5 times vibrating screen.
8. Longer life time of small parts.
9. Noise <75 dB
10. Optimization of gravity balance, foundation dynamic load is low.

Using Scope

1. Food industry: flour, milk powder, starch, fish meal, rice flour,quinoa, vitamin, spices, dextrin, drinks, juice, sugar, soy sauce, pineapple juice, yeast, the mother liquor, etc.
2. Chemical industry: paint, tree cosmetics, PVC tree of cosmetics, citric acid, PE powder, washing powder, etc.
3. Pharmaceutical industry: Pharmaceutical intermediates, medical auxiliary materials,this solution, west powder, and west solution, etc.
4. Ceramic abrasive metallurgy industry: aluminum silver pulp, mud, kaolin, quartz sand, alumina, artificial black aluminum, graphite, silicon, etc.

Technical Parameters

Certificates:
1. ISO International Standards ensure that products and services are safe, reliable and of good quality.
2. CE certification is designed to protect EU consumers by regulating products to reduce possible dangers to people and the environment.

FAQ

1. MOQ require?
Our MOQ is 1 set.(If you need the spare parts,it is also ok.

2. Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A

3. How to guarantee the quality?
If any machine quality problems, we accept return cargos.
Our warrantity is 18 months, promise your 0 risks purchasing

4. Packing and Delivery
Standard export wooden case to protect the machine from demage.
If we have no stock, we will delivery within 7-20 working days.

Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to providing customers with reasonable and efficient screening, conveying and crushing equipment design solutions.
1. The company have more than 100 employers, and setted with R & D, technology and other departments, of which graduate students, college education accounted for more than 80%.

2. The company is located in Henan, Xinxiang province. The main products are divided into:
Fine screening equipment (lab sieve shaker; vibro screen; ultrasonic vibrating screen; flour screen; rotary sifter; liquid sifter; tumbler screener; linear vibrating screen; gyro screen, etc.);
Mining screen equipment (roller or trommel screen, circular vibrating screen; heavy linear vibrating screen; probability screen; dewatering sieve; stack sieve etc.)
Conveyor equipment (belt conveyor, screw conveyor, bucket elevator, etc.)
Crushing equipment (hammer crusher, jaw crusher, etc.)

3. The pruducts has passed the ISO9001 quality system and CE certification, and all the equipment fittings are famous brand in China.
4. The equipment is not only popular in China and have been exported to the United States; Australia; Russia; Britain; Spain; Germany; Japan; Holland; Poland; Turkey; Oman; Philippines; Thailand; Indonesia; Singapore and other countries and regions.
